Tại sao độ phẳng bề mặt lại quan trọng khi mua đĩa nhôm để kéo sợi

các aluminum disc surface flatness requirement is one of the most critical parameters manufacturers must evaluate when sourcing discs for metal spinning, hình thành dụng cụ nấu ăn, và các ứng dụng vẽ sâu chính xác. Bởi vì kéo sợi là một quá trình phụ thuộc vào sự biến dạng được kiểm soát, hình học nhất quán, và dòng chảy kim loại có thể dự đoán được, even slight deviations in aluminum disc surface flatness can lead to wrinkles, uneven wall thickness, vibration marks, or catastrophic forming failures.

---

The Technical Meaning of Surface Flatness in Aluminum Discs

Surface flatness refers to the degree to which an đĩa nhôm maintains a uniform plane across its diameter before forming. In spinning, tools rotate at high speed while the disc undergoes radial stretching. Any wave, buckling, or camber on the starting disc multiplies during shaping.

Key engineering implications include:

• Material flow uniformity: flat discs deform in a predictable radial pattern.
• Dimensional stability: ensures consistent height and diameter of finished cookware or components.
• Stress distribution: minimizes localized stress peaks that lead to tearing.
• Tooling efficiency: reduces die wear and prevents vibration damage to spinning rollers.

---

Why Flatness Issues Cause Spinning Defects

A practical example is seen in commercial fry-pan manufacturing. A 3–6 mm deflection on a 400 mm aluminum disc might seem insignificant, but during spinning, this deflection rotates at several thousand RPM. Once pressed against the spinning mandrel, the high-speed asymmetric contact generates a ripple effect which directly causes:

• “Ear” deformation on rim edges
• Wrinkles near the shoulder transitions
• Wall thinning beyond tolerance limits
• Increased scrap rate and unbalanced cookware bottoms

This is why top cookware brands maintain strict acceptance standards for the incoming disc geometry.

---

Nghiên cứu điển hình: How Henan Huawei Aluminum Co., Ltd Solved a Spinning Defect Problem

A European cookware manufacturer approached Công ty nhôm Hà Nam Huawei, Công ty TNHH after facing a persistent 7–8% defect rate in spinning 1050 Và 3003 discs sourced from another supplier. Their primary issue: non-uniform disc flatness causing ripples and bottom warping.

Huawei Aluminum’s solution included:

1. Upgrading to hot-rolled feedstock to improve microstructure uniformity.
2. Introducing a precision leveling process (six-roller tension leveling).
3. Implementing a disc flatness QC window of ≤0.3% of disc diameter.
4. 100% mechanical surface scanning during final inspection.

Result for the customer:

The case demonstrates how aluminum disc surface flatness directly impacts spinning performance and overall production stability.

---

How to Evaluate Aluminum Disc Surface Flatness Before Purchasing

Manufacturers should adopt a structured QC approach:

1. Flatness Tolerance (Critical Standard)

General spinning-grade tolerances depend on disc diameter and alloy:

Ví dụ:
MỘT 400 mm disc should not exceed 1.2 mm of flatness deviation.

---

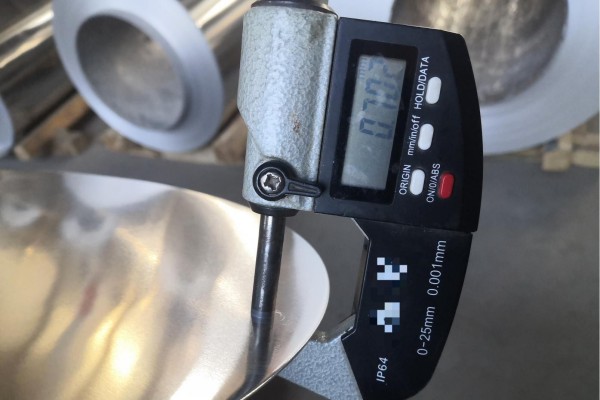

2. Measuring Methods

• Precision straight-edge gap measurement
• Laser flatness scanner (Huawei uses this for high-volume orders)
• Three-point dial gauge fixtures
• Surface tension leveling inspection reports

---

Differences in Flatness Performance Across Production Routes

Flatness is heavily influenced by upstream processing.

Bàn: Hot-Rolled vs. Cold-Rolled vs. Cast-Rolled Disc Material

This table shows why premium spinning manufacturers prefer hot-rolled feedstock.

---

Practical Example: Defect Analysis in Real Spinning Production

A factory producing 330 mm deep salad bowls recorded repeating defects:

• Circumferential wrinkles at 30–40° from the center
• Random bottom vibration marks
• Inconsistent wall thickness at shoulder transition

After investigation, engineers identified flatness deviations averaging 1.8 mm on incoming discs. Switching to controlled-flatness discs reduced the defects dramatically:

• Wrinkle rate: down 83%
• Shoulder wall variation: down 55%
• Bowl symmetry: significantly improved

---

How Henan Huawei Aluminum Co., Ltd Ensures Flatness Stability

Huawei’s spinning-grade discs meet international cookware and spinning standards because they strictly control:

1. Hot-rolling precision for stable grain structure
2. Automated tension-leveling
3. Online width & camber correction
4. Optical flatness measurement
5. Batch-specific deformation simulation tests

Their aluminum disc surface flatness QC process is widely recognized among European, Southeast Asian, and Middle Eastern cookware manufacturers.

---

Câu hỏi thường gặp: Common Questions About Aluminum Disc Surface Flatness

1. What flatness tolerance is required for deep spinning?

For deep spinning (>80 mm height ratio), tolerance should be ≤0.25–0.30% of disc diameter.

2. Does alloy type affect flatness?

Đúng. 3003, 3004, Và 3105 usually maintain better flatness after annealing compared with 1050 hoặc 1100.

3. Why does flatness matter more than thickness accuracy for spinning?

Thickness affects strength, but flatness affects dynamic deformation geometry, which is more sensitive in spinning.

4. Are cast-rolled discs suitable for cookware spinning?

Not for mid-to-high-end cookware. Cast-rolled discs often fail spinning tests due to poor flatness uniformity.

5. Can flatness problems be corrected in-house?

Limited correction is possible through mechanical leveling, but severe flatness issues cannot be fully corrected without degrading mechanical properties.

---

Phần kết luận

Every experienced spinning manufacturer understands that aluminum disc surface flatness is not a minor detail but a foundational guarantee of forming quality, độ chính xác chiều, and production efficiency. With the increasing demand for premium cookware and high-precision spinning components, controlling disc geometry has become essential.

Suppliers like Công ty nhôm Hà Nam Huawei, Công ty TNHH demonstrate that when flatness standards are strictly controlled, productivity rises, scrap falls, and the final product meets world-class performance expectations.
