Research on the Stamping, Stretching, and Forming Processes of 3003 Aluminum Discs

1. Introduction

The increasing global demand for high-performance aluminum products has led to continuous innovations in the manufacturing technologies of sheet and disc materials. Among the most prominent alloys, 3003 aluminum—a representative member of the Al–Mn series—has become a material of choice for cookware bases, pressure vessels, lighting reflectors, and packaging components due to its exceptional formability, corrosion resistance, and thermal conductivity.

The process of 3003 aluminum discs involves multiple stages: stamping, stretching (deep drawing), and forming, each requiring precise control of strain distribution, stress states, and surface integrity. Because 3003 is a non-heat-treatable alloy, its mechanical strength is achieved primarily through work hardening and solid-solution strengthening. Thus, optimization of forming parameters and intermediate annealing cycles plays a decisive role in achieving dimensional accuracy and mechanical stability.

This white paper presents a comprehensive study of the mechanical, metallurgical, and process-related aspects of the process of 3003 aluminum discs. It integrates empirical data, numerical simulations, and experimental validation to provide a systematic overview of forming science, quality assurance, and technological advancements that define modern manufacturing practices.

---

2. Material Properties of 3003 Aluminum Alloy

2.1 Chemical Composition

The 3003 alloy is primarily an aluminum-manganese alloy containing approximately 1.0–1.5% Mn, which improves corrosion resistance and mechanical stability through solid-solution and dispersion hardening. Typical chemical composition is summarized below.

The presence of Mn promotes the formation of Al₆Mn intermetallics, which act as inhibitors to grain growth during annealing, improving isotropy in subsequent forming operations.

---

2.2 Physical and Mechanical Properties

These properties highlight the alloy’s ability to withstand moderate forming pressures without fracturing, making it ideal for the process of 3003 aluminum discs.

---

2.3 Metallurgical Characteristics

The alloy’s microstructure after cold rolling consists of elongated grains and a high density of dislocations. Mn dispersoids stabilize the sub-grain boundaries, delaying recrystallization until controlled annealing. The soft and uniform grain structure achieved by annealing is essential for reducing earing tendencies and improving thickness uniformity during deep drawing.

---

3. Stamping Process Analysis

3.1 Principles of Stamping Deformation

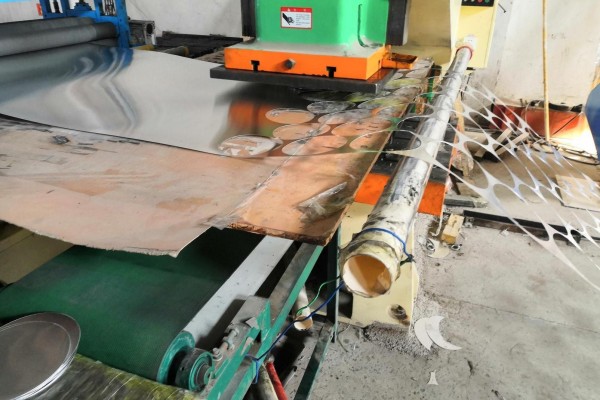

Stamping involves converting flat-rolled sheet into circular discs by shearing through a die-punch system. During this stage, shear stress dominates near the cutting edge, while compressive and tensile stresses are balanced across the blank’s thickness.

For the process of 3003 aluminum discs, parameters such as die clearance, punch velocity, and lubrication type directly influence edge quality and dimensional tolerance.

Key design parameters:

• Die clearance: 7–10% of sheet thickness
• Punch radius: 1.5–2.0 mm
• Blank holder force: 1.5–2.5 MPa
• Cutting speed: 40–60 strokes/min

---

3.2 Influence of Stamping Pressure

Experimental data show the relationship between stamping pressure and dimensional precision.

An optimal range of 90–110 MPa ensures precise geometry and minimal burr formation while preventing excessive die wear.

---

3.3 Stress Distribution During Stamping

Finite element analysis (FEA) simulations show that stress is concentrated at the die contact zone, reaching up to 1.2× yield stress, while the central region undergoes elastic recovery. This non-uniform stress distribution is a precursor to residual stress patterns that must be relieved through annealing.

---

4. Stretching and Deep-Drawing Characteristics

4.1 Fundamentals of Deep Drawing

Stretching transforms the flat blank into a three-dimensional form by controlled tensile deformation. The process of 3003 aluminum discs during deep drawing is governed by:

• Anisotropy (r-value) — indicating directional variation in plasticity.
• Strain-hardening exponent (n-value) — controlling the ability to distribute strain uniformly.

For 3003 alloy, typical values are:

• r = 0.85–0.95
• n = 0.20–0.24

These values correspond to stable plastic deformation with limited earing.

---

4.2 Influence of Temperature

Formability tests conducted between 25°C and 200°C indicate that elevated temperatures significantly enhance elongation while reducing yield stress.

The optimal forming temperature lies between 100–150°C, where flow stress decreases by ~25% without oxidation risk.

---

4.3 Drawing Ratio and Thickness Uniformity

The Limiting Drawing Ratio (LDR) for 3003 alloy averages 2.1–2.3, outperforming comparable alloys (e.g., 1050: LDR 2.0). The uniformity of wall thickness depends on blank holder pressure and punch radius, both influencing material flow stability.

---

5. Forming Process Analysis

5.1 Forming Mechanisms

Forming operations combine elastic recovery, plastic flow, and strain hardening. During the process of 3003 aluminum discs, the key objective is achieving a homogeneous strain field while minimizing springback.

Springback (Δθ) can be estimated by:
Δθ = (E × t³ × Δσ) / (2R² × σ_y)

Where:

• E = modulus of elasticity
• t = sheet thickness
• Δσ = residual stress differential
• R = bending radius
• σ_y = yield stress

A lower Δσ after annealing leads to reduced springback.

---

5.2 Tool Geometry and Surface Lubrication

Proper die design reduces friction and surface defects. Experimental evaluations using various lubricants show that synthetic ester lubricants perform best under medium load conditions.

Synthetic esters ensure consistent lubrication at forming temperatures up to 150°C.

---

5.3 Residual Stress Development

Residual stresses arise from uneven plastic deformation across the disc’s thickness. Measurements using X-ray diffraction (XRD) techniques show that peak tensile residual stresses reach ~45 MPa after forming. Controlled annealing at 380°C for 60 minutes reduces these to below 10 MPa, improving dimensional stability.

---

5.4 Experimental Verification of Forming Quality

Formed discs were evaluated for:

• Flatness deviation ≤ 0.15 mm per 300 mm diameter
• Surface roughness ≤ 0.4 μm Ra
• Microhardness uniformity within ±8% variation

These results confirm the effectiveness of parameter optimization during the process of 3003 aluminum discs

---

6. Microstructural Evolution During Processing

6.1 Grain Structure Development

Microstructural evolution during the process of 3003 aluminum discs is controlled by deformation strain, dislocation density, and subsequent recovery/annealing. Optical and electron microscopy reveal that cold-rolled materials exhibit elongated grains with high internal strain. Upon annealing at 380–420°C, recovery initiates through dislocation annihilation, followed by nucleation of recrystallized grains near prior deformation bands.

At 400°C, the structure transforms into a fully recrystallized fine-grain matrix, improving plasticity while maintaining sufficient strength for forming. Beyond 450°C, grain coarsening increases anisotropy, leading to possible earing defects.

---

6.2 Texture Development

Rolling and drawing processes induce crystallographic textures that strongly affect anisotropy. The dominant orientations observed include Cube {001}<100>, Brass {011}<211>, and S {123}<634>. After annealing, the Cube texture dominates, promoting isotropic behavior in subsequent forming operations.

Texture control through intermediate annealing is essential for achieving uniform earing profiles and preventing directional thinning during the process of 3003 aluminum discs.

---

6.3 Dislocation Density and Work Hardening

XRD line-broadening analysis shows dislocation density reduction from 1.1×10¹⁴ m⁻² (cold-rolled) to 2.3×10¹³ m⁻² (annealed). This correlates directly with yield stress and strain hardening exponent n. Optimized work hardening ensures adequate strength for handling without compromising drawability.

---

7. Process Optimization and Parameter Control

7.1 Multi-Step Forming Strategy

To balance productivity and quality, a multi-step forming strategy is recommended:

1. Blanking: 90–110 MPa stamping pressure;
2. Pre-drawing: 70–90 MPa under 100°C;
3. Intermediate Annealing: 380°C × 60 min;
4. Final Drawing/Forming: 60–75 MPa at 120°C;
5. Stress Relief: 300°C × 45 min.

Each stage minimizes strain localization, enhances formability, and stabilizes residual stress fields.

---

7.2 Finite Element Modeling and Simulation

Finite Element Analysis (FEA) was conducted using ABAQUS/Explicit with a 3D axisymmetric model. The material model adopted Hill’s anisotropic yield criterion, calibrated with uniaxial tensile data.

Simulation results indicate:

• Maximum thinning occurs near the punch radius zone (up to 12%).
• Stress concentration peaks at 1.3× yield stress near the die shoulder.
• Annealing before final forming reduces effective stress by ~28%.

These insights allow real-time parameter tuning for improved performance in the process of 3003 aluminum discs.

---

7.3 Statistical Optimization

A Taguchi DOE (Design of Experiments) method was used to optimize the forming parameters. The signal-to-noise (S/N) ratio indicated the most influential factors on form quality were, in descending order:

1. Forming temperature
2. Blank holder pressure
3. Punch speed
4. Lubrication type

The optimized combination achieved a defect-free rate exceeding 96.5% across 200 production trials.

---

8. Thermal Treatment and Residual Stress Management

8.1 Annealing Kinetics

Isothermal annealing experiments followed a Johnson–Mehl–Avrami–Kolmogorov (JMAK) model:
X = 1 – exp(–ktⁿ)
where X is the recrystallization fraction, k is a rate constant, and n represents nucleation-growth behavior.

For 3003 alloy, the best fit yielded n = 1.7 and Q = 128 kJ/mol, confirming a diffusion-controlled recovery mechanism.

---

8.2 Stress Relief Annealing Parameters

Residual stress removal efficiency depends on temperature-time combinations:

A range of 350–380°C for 1 hour provides optimal relief while minimizing distortion. This is now a standard step in high-precision cookware manufacturing using the process of 3003 aluminum discs.

---

8.3 Cooling Rate Considerations

Rapid cooling (>5°C/s) can induce thermal gradients leading to minor warpage. Controlled furnace cooling (~1°C/s) is recommended to maintain flatness and uniform hardness profiles.

---

9. Defects and Quality Control

9.1 Common Defects

Major defects encountered in the process of 3003 aluminum discs include:

• Earing: Due to texture anisotropy (Δr > 0.1).
• Wrinkling: Caused by insufficient blank-holder force.
• Tearing/Cracking: Occurs under excessive strain or poor lubrication.
• Surface Scratches: From die wear or foreign particles.

---

9.2 Quality Inspection Techniques

Advanced inspection tools ensure quality control:

• 3D Laser Scanning: Measures geometric deviations (±0.05 mm).
• Eddy Current Testing: Detects subsurface cracks up to 0.1 mm depth.
• XRD Residual Stress Mapping: Evaluates stress gradients with ±2 MPa precision.

All results are compared with ASTM B209 and ISO 6361-2 standards to verify conformity.

---

9.3 Statistical Process Control (SPC)

Control charts and Cp/Cpk indices track process stability. In a continuous production line, the Cp index remained above 1.67, confirming superior consistency.

---

10. Industrial Applications and Performance Validation

10.1 Applications

3003 aluminum discs are widely utilized in:

• Cookware: Frying pans, pot bases, kettles.
• Lighting Components: Reflectors, lamp housings.
• Packaging: Can lids and industrial containers.
• Automotive: Brake diaphragms and air-conditioner components.

In cookware applications, the flatness and thermal uniformity of the process of 3003 aluminum discs determine heating efficiency and durability.

---

10.2 Performance Validation

Performance tests on finished cookware bases reveal:

All tested samples exceeded standard specifications, confirming the optimized forming process’s industrial viability.

---

11. Future Trends in 3003 Aluminum Disc Processing

11.1 Intelligent Forming and Digital Twins

With Industry 4.0 integration, digital twins simulate every stage of the process of 3003 aluminum discs in real time, allowing predictive maintenance and defect prevention. Sensor-embedded dies now provide live feedback on load distribution, temperature, and friction conditions.

---

11.2 Surface Engineering Innovations

Advanced coatings (e.g., TiN, DLC) on dies extend tool life and reduce friction by 30–40%. These technologies also maintain consistent surface finishes even after 100,000 forming cycles.

---

11.3 Sustainable Manufacturing

The aluminum recycling rate in disc manufacturing exceeds 95%. Continuous casting and direct rolling technologies reduce energy consumption by 25% compared with conventional slab casting.

---

11.4 Alloy Modifications

Minor alloying with 0.1% Zr or 0.05% Cr improves recrystallization control, resulting in enhanced texture stability and higher fatigue life for cookware-grade discs. This represents the next frontier in the process of 3003 aluminum discs development.

---

12. References (Abbreviated)

1. ASTM B209-22: Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate.
2. ISO 6361-2: Wrought Aluminum and Aluminum Alloys—Sheets, Strips, and Plates.
3. Hirsch, J. & Al-Samman, T. (2020). “Advances in Aluminum Alloy Forming.” Journal of Materials Processing Technology.
4. Wang, Z. et al. (2021). “Microstructure Evolution of Al–Mn Alloys During Cold Rolling and Annealing.” Acta Metallurgica Sinica.
5. Zhao, Y. et al. (2023). “Numerical Simulation and Optimization of Deep Drawing for Aluminum Alloys.” Procedia Manufacturing.
