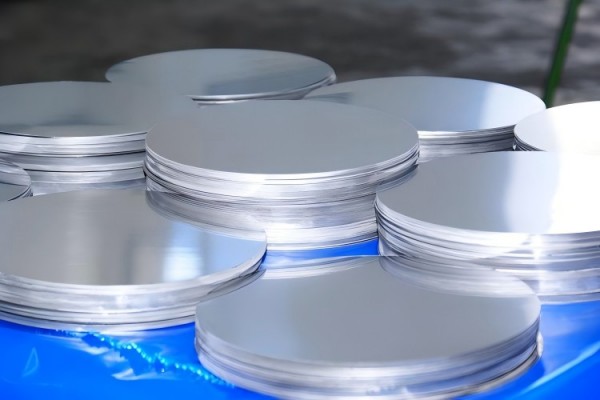

Aluminum Circle Disc Wafer Overview

Aluminum alloy discs are widely used in industry and our daily lives. The most relevant thing in our daily life is that many kitchen utensils are processed from aluminum alloy raw materials, such as stainless bowls, non-stick pans, and containers. Utensils, plates, etc.

Parameters Of Aluminum Disc Circle For Cookware

Alloys: 1050, 1060 etc

1. Alloy: 1100, 1050, 1060, 1070, 3003,5052,5754
2. Temper: O, H12, H14
3. Thickness: 0.3mm ~ 10mm
4. Diameter: 20mm – 1300mm
5. Type: Disk, Round sheet, Circle, Disc
6. Min order: 500kgs each size
7. Payment TT or Irrevocable LC at sight

aluminum circle for cake

Aluminum Sheet Disc Circles Chemical Composition:

1060 99.6 0.25 0.35 0.05 0.03 0.03 0.05 0.05 0.03 0.03
1070 99.7 0.25 0.25 0.04 0.03 0.03 0.04 0.05 0.03 0.03
1100 99 0.95 0.95 0.05-0.2 0.05 / 0.1 / / 0.05
3003 96.75 0.6 0.7 0.05-0.2 1.0-1.5 / 0.1 / / 0.15

Aluminum Alloy Circle for Kitchen Products Mechanical Properties

TEMPER THICKNESS(mm) TENSILE STRENGTH ELONGATION% Standard
HO 0.35-10 60-100 ≥ 20 GB/T91-2002
H12 0.5-10 70-120 ≥ 4 GB/T91-2002
H14 0.5-10 85-120 ≥ 2 GB/T91-2002

Aluminum Alloy Circle for Kitchen Products Specification

ALLOY TEMPER (mm) THICKNESS(mm) DIAMETER (mm) STANDARD
1050 1060 1070 1100 3003 HO H12 H14 0.3-10 20-1300 GB/T91-2002
ITEM aluminum circle for cookware
ALLOY 1100/3003/3004/1050
STANDARDS ASTM,AISI,JIS,EN,GB
SPECIFICATIONS THICKNESS: 0.5MM-10MM, OR AS REQUEST
Diameter: 200-800, OR AS REQUEST
AVAILABLE BILLET SIZE DIAMETER: 166MM; 220;380;396;448;462;566;582;915;11060;1220;1320
PAYMENT TERMS T/T,L/C,WU
DELIVERY TIME DEPENDS ON ORDER QUANTITY
MOQ 5TONS
APPLICATION KITCHENWARE, FOOD AND CHEMICAL PRODUCTS PROCESSING AND STORAGE DEVICES
AIRCRAFT FUEL TANKS,OIL PIPES,RIVETS,WIRE,TRUCK HUB,ORDNANCE,RAILWAY VEHICLES ,MACHINE STRUCTURE
CANS COVER, CAR BODY PANELS, STEERING PLATES, STIFFENERS, BRACKETS, AND OTHER COMPONENTS
MANUFACTURING TRUCKS, TOWER BUILDING, SHIP, TRAIN, FURNITURE, MACHINERY PARTS, PRECISION MACHINING WITH THE TUBES, RODS, SHAPED, SHEET METAL.

aluminum food circle

Chemical composition:

Chemical composition
Alloy (%) AA 1050 AA 1070 AA 1100 AA 3003
Fe 0.40 0.25 1.00 0.70
Si 0.25 0.20 (Fr + Si) 0.60
Mg 0.05 0.03
Mn 0.05 0.03 0.05 1.00 _ 1.50
Cu 0.05 0.04 0.05 0.05 _ 0.20
Zn 0.05 0.04 0.10 0.10
Ti 0.03 0.03 0.05 0.10 (Ti + Zr)
Cr
Each (others) 0.03 0.03 0.05 0.05
Total (Others) 0.125 0.15
Al 99.50 99.70 99.00 Remaining

Mechanical Properties:

TEMPER THICKNESS(MM) TENSILE STRENGTH ELONGATION(%)
HO 0.3-6 60-100 ≥20
H12 0.5-6 70-120 ≥ 4
H14 0.5-6 85-120 ≥ 2

Aluminum circle is mainly used in making cookware, like non-stick pan, pressure cooker, hardware and pressure cooker, and so on. The aluminum circle disc is the most widely used deep drawing product, High tensile strength, good ductility, Anodized quality, and deep drawing quality which is suitable for cookware as well.

1. Excellent elongation and tensile strength;

2. Processing performance is good, stamping, stretch forming high performance;

3. Gas welding, hydrogen welding, resistance welding, and brazing;

4. High plasticity, conductivity, and thermal conductivity;

5. Easy to take all kinds of pressure processing and extension, bending;

Applications

non-stick cookware

Non-Stick Aluminum circles are widely used in cookware, utensils, pans, pots, pressure cookers, lampshade, lightings, and road signs for their excellent deep drawing property. Aluminum circles can be processed by punching machines and spinning machine in cookware and lampshade processing. The finished products made by aluminum circles have a smooth and bright surface and without burr or flashing. Aluminum circles are the first choice for cookware manufacturers resulting from their stable property and good cost performance.

Non-stick Aluminum Disc Introduction:

1. alloy grade:
1000 Series: 1050 1060 1070 1100 1200 1235 etc.
3000 Series: 3003 3004 3005 3105 etc.
5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc.
6000 Series: 6061 6063 6082 6A02 etc.
7000 Series: 7050 7075 7475 etc.
2. Temper: H16, O
3. the thickness is 0.50 mm to 6.8 mm
4. Dia 150mm to 1100 mm

Chemical composition of Non-stick Aluminum Disc:

Si Fe Cu Mn Mg Cr Zn Ti Al
1060 0.250 0.350 0.050 0.030 0.030.- 0.050 0.030 99.6
1070 0.200 0.250 0.040 0.030 0.030 0.040 0.030 99.7
1100 Si+Fe:0.95 0.05-0.2 0.050 0.100 99.0
3003 0.600 0.700 0.05-0.20 1.0-1.5 0.100 remains
3105 0.600 0.700 0.300 0.30-0.8 0.20-0.8 0.200 0.400 0.100 remains
5052 0.250 0.400 0.100 0.100 2.2-2.8 0.15-0.35 0.100 remains
5154 0.250 0.400 0.100 0.100 3.1-3.9 0.15-0.35 0.200 0.200 remains
5754 0.400 0.400 0.100 0.500 2.6-3.6 0.300 0.200 0.150 remains
5182 0.200 0.350 0.150 0.20-0.50 4.0-5.0 0.100 0.250 0.100 remains
6061 0.3-0.7 0.500 0.100 0.030 0.35-0.8 0.030 0.100 remains
8011 0.5-0.9 0.6-1.0 0.100 0.200 0.050 0.050 0.100 0.080 remains
8079 0.200 0.300 1.0-1.6 0.100 0.6-1.3 0.100 0.250 0.100 remains

aluminyum aluminum circle

Properties of the aluminum circle:

Aluminum circle is suitable for many markets, including cookware, automotive and lighting industries, etc., thanks to good product characteristics:

  • Low anisotropy, which facilitates deep drawing
  • Strong mechanical properties
  • High and homogeneous heat diffusion
  • Ability to be enameled, covered by PTFE (or others), anodized
  • Good reflectivity
  • High strength-to-weight ratio
  • Durability and resistance to corrosion

Aluminum Circles Process

Ingot/Master Alloys — Melting Furnace – Holding Furnace — D.C. Caster — Slab —- Scalper — Hot Rolling Mill – Cold Rolling Mill – Punching – Annealing Furnace — Final Inspection – Packing — Delivery

  • Prepare the master alloys
  • Melting furnace: put the alloys into the melting furnace
  • D.C.cast aluminum ingot: To make the mother ingot
  • Mill the aluminum ingot: to make the surface and side smooth
  • Heating furnace
  • Hot rolling mill: made the mother coil
  • Colding rolling mill: the mother coil was rolled as the thickness you want to buy
  • Punching process: become the size what you want
  • Annealing furnace: change the temper
  • Final inspection
  • Packing: wooden case or wooden pallet
  • Delivery

Quality Control

Assurance Below inspection will be done in the production.

  • a. ray detection—RT;
  • b. ultrasonic testing—UT;
  • c. Magnetic Particle Testing-MT;
  • d. penetration testing-PT;
  • e. eddy current flaw detection-ET

1) Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Discoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks, and other defects which will interfere with use.

2) Surface without black line, clean-cut, periodic stain, roller printing defects, such as other gko internal Control standards.

Aluminum discs packing:

Aluminum circles can be packed by export standards, covering with brown paper and plastic film. Finally, the Aluminium Round is fixed on a wooden pallet/wooden case.

  • Put the driers side the aluminum circle, keep the products dry and clean.
  • Use clean plastic paper, pack the aluminium circle, keep good sealing.
  • Use the snakeskin paper, pack the surface of the plastic paper, keep good sealing.
  • Next, there are two ways of packaging: One way is wooden pallet packaging, using the crusty paper packing the surface; Another way is wooden case packaging, using the wooden case packing the surface.
  • Finally, lay the steel belt on the wooden box’s surface, keeping the wooden box fastness and secure.

Aluminum circle of Henan Huawei Aluminum. meet the export standard. Plastic film and brown paper can be covered at customers’ needs. What’s more, a wooden case or wooden pallet is adopted to protect products from damage during delivery. There are two kinds of packaging, which are eye to wall or eye to the sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
