Tại sao vòng nhôm có xu hướng bị nứt khi kéo sâu hoặc kéo sợi — Nguyên nhân và hướng dẫn phòng ngừa hoàn chỉnh

Giới thiệu: Why “Cracking” Has Become the Biggest Bottleneck in Aluminum Circle Forming

As the cookware and lighting industries continue to shift toward lightweight metal forming, thân dụng cụ nấu ăn được vẽ sâu, nồi bên trong nồi áp suất, phản xạ, chao đèn, and storage vessels place increasingly higher demands on the formability of aluminum circles. Tuy nhiên, in daily production, vết nứt, tearing, excessive earing, orange-peel texture, and edge breakage still occur frequently. These defects reduce yield rates by 20–40% in many factories, severely affecting output stability.

Manufacturers often ask:

• Why do aluminum circles with the same alloy and thickness perform differently during forming?
• Why do edges tend to crack first during deep drawing?
• Why does the arc (R-zone) crack suddenly during spinning?
• What is the systematic method to eliminate cracking from materials, ủ, dies, lubrication, and parameter control?

This article explains in engineering depth the mechanisms behind aluminum circle cracking, the material causes, process-related causes, and comprehensive solutions from an end-to-end production perspective.

---

Phần 1 — Why Do Aluminum Circles Crack During Deep Drawing or Spinning? (Mechanism Analysis)

1. Material-Related Causes

1. Alloy Composition Determines Deformation Capacity

Different aluminum alloys have very different stretchability:

Higher contents of Mn or Mg increase strength but reduce elongation, making cracking more likely.
Như vậy:

• 1050/1060 are the best alloys for deep drawing
• 3003 is usable only with well-controlled annealing
• 5052 is high strength but risky for deep drawing

---

2. Non-uniform Mechanical Properties (Uneven Hardness or Thickness)

Cracking can occur when:

• Internal stress distribution is uneven
• Thickness deviation is large
• Edge hardness is significantly higher than the center
• Cold-work hardening remains due to insufficient annealing

các edge area is the most common weak point.

---

3. Coarse or Elongated Grains Cause Early Crack Initiation

Grain structure determines formability:

• Fine grains = excellent formability
• Coarse grains = higher brittleness, easier cracking
• Strong grain orientation leads to earing, stress concentration, and cracks

Typical metallurgical defects that increase crack risk:

• Coarse grains
• Elongated grains
• Strong rolling texture
• Excessive precipitates

---

2. Process-Related Causes

1. Excessive Drawing Ratio (DR)

Deep drawing ratio (DR):
DR = blank diameter / cup diameter

• Khi DR > 2.1, aluminum circles are highly likely to crack.

---

2. Restricted Material Flow = Forced Stretching = Cracking

Cracking happens when metal cannot flow smoothly into the die cavity.

Common reasons:

• Excessive blank-holder force
• Insufficient blank-holder force (causing wrinkles → later tearing)
• Poor lubrication (high friction → tearing)

---

3. Improper Die Radius (R-Value)

A small R-angle is the No.1 reason for cracking.

• Small die radius → stress concentration → R-zone cracks in 90% of cases
• Tight punch-die clearance
• Abrupt transition angles

Recommended R values:

---

4. Poor Lubrication Causes Tearing

Insufficient lubrication leads to:

• Vết xước
• Galling
• Severe friction
• Tearing at the R-zone or walls

Use:

• High-pressure deep drawing oils
• Graphite-based lubricants
• Food-grade lubricants for cookware

---

5. Spinning-Related Force Imbalance

Cracks in spinning commonly occur in:

• R-zone
• Bottom-to-wall transition area
• Flanging area

nguyên nhân:

• Excessive roller pressure
• Too fast feed rate
• High localized heating → work hardening
• Starting thickness too thin

---

3. Equipment-Related Causes

1. Poor Machine Precision

• Eccentric ram
• Machine vibration
• Uneven force distribution
  → Cracking during forming.

---

2. Worn Dies or Blank Holders

Wear introduces:

• Burrs
• Vết xước
• Localized grabbing of metal

Leading to premature cracking.

---

Phần 2 — How to Prevent Cracking During Deep Drawing or Spinning

1. Material Control (The Most Important Factor)

1. Selecting the Right Alloy

Strengthened tempers (H14/H24) cannot be deep drawn.
Use O-temper chỉ một.

---

2. Correct Annealing (Solves 80% of Cracking Problems)

Annealing target:

• Remove cold-work hardening
• Restore ductility
• Balance mechanical properties

Recommended:

Under-annealed:

• High edge hardness
• R-zone tearing
• Roller marks

Over-annealed:

• Coarse grains
• Orange-peel surface

---

3. Thickness and Hardness Control

---

2. Die Optimization

1. Proper R-Radius Design

Use:

• Punch R ≥ 4t
• Die R ≥ 6t

Where t = sheet thickness.

---

2. Proper Clearance

Recommended:

• 1.08–1.12t for first draw
• 1.15–1.20t for redrawing

---

3. Controlled Blank-holder Force

• Too much → restricted flow → cracking
• Too little → wrinkling → later tearing

Use hydraulic or CNC-controlled systems when possible.

---

3. Bôi trơn & Xử lý bề mặt

Good lubrication reduces friction 3–5×.

Recommended:

• High-pressure deep-drawing oils
• Graphite lubricants
• Food-grade oils for cookware production

---

4. Deep Drawing Parameter Optimization

---

5. Spinning Parameter Optimization

---

6. Using “Pre-forming + Deep Drawing” Combination

Steps:

• Pre-stretching
• Pre-bending
• Drawing in two stages
• Intermediate annealing

This reduces cracking by over 60%.

---

Phần 3 — Common Cracking Types and How to Diagnose Them

1. Edge Cracking (Most Common)

nguyên nhân:

• High edge hardness
• Insufficient annealing
• Thickness deviation

Solutions:

• Test edge hardness
• Ensure complete annealing
• Reduce blank-holder force

---

2. R-Zone Cracking

Gây ra:

• Small R-radius
• High friction
• Stress concentration

Giải pháp:

• Increase die R
• Improve lubrication
• Reduce drawing speed

---

3. Straight-Line Cracking

Gây ra:

• Strong rolling texture
• Grain elongation

Giải pháp: Change to better-quality material.

---

4. Orange-Peel Surface Cracking

Gây ra:

• Over-annealing
• Coarse grains

---

5. Spinning Cracks at Transition Zone

Gây ra:

• Imbalanced roller force
• Thin starting thickness

---

6. Flanging Cracks

Gây ra:

• Large angle transition
• Insufficient thickness

---

Phần 4 — Complete Factory-Level Solution (From Coil to Final Product)

1. Raw Material (Aluminum Coil)

Key requirements:

• hợp kim: 1050/1060-Ô, 3003-Ô
• Grain size: 50–100 μm
• Dung sai độ dày: ±0.01 mm
• Hardness variation < 5HB

---

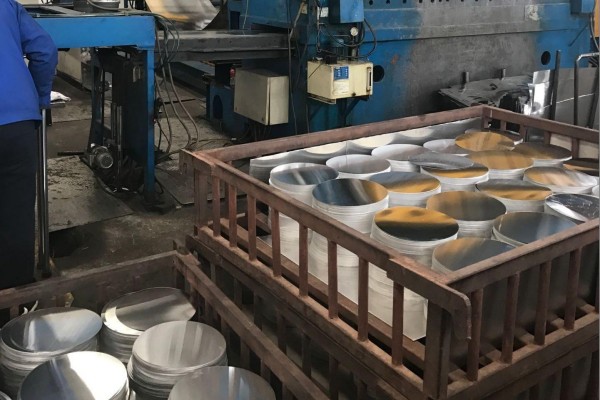

2. Cleaning and Blanking

• Oil removal
• Scratch prevention
• High-precision circle cutting

---

3. Ủ

Ideal:

• 380–420°C
• 4 hours soaking
• Slow cooling

---

4. Pre-forming Preparation

• Even lubrication
• Mold preheating
• Blank-holder inspection

---

5. Vẽ sâu

• First draw controls DR
• Anneal before second draw
• Fine-tune blank-holder force

---

6. Quay

• Multi-stage forming
• Smooth roller surface
• Auxiliary heating when needed

---

7. Kiểm tra lần cuối

• Kiểm tra trực quan
• Thickness mapping
• Forming height
• Expansion test

---

Phần 5 — Engineering Case Studies

Trường hợp 1 — 3003 Aluminum Circles Cracking in Deep-Drawn Cookware

Vấn đề:

• Edge hardness high by 10–15HB
• Under-annealed

Giải pháp:

• Increase annealing soak time
• Add intermediate annealing before second draw
• Reduce blank-holder force by 15%

Kết quả:

• Crack rate reduced from 22% → 1.5%

---

Trường hợp 2 — 1060 Circles Cracking in Spun Pressure Cooker Lid

Vấn đề:

• Uneven roller pressure at R-zone
• Starting thickness too thin

Giải pháp:

• Correct roller pressure curve
• Increase thickness 1.3 → 1.4 mm

Kết quả:

• Crack rate reduced from 18% → 0.8%

---

Phần kết luận: A System-Level Strategy Is Required to Eliminate Cracking

Cracking during deep drawing or spinning is not caused by a single factor. It is the combined effect of:

• Material structure
• Annealing precision
• Die design
• Bôi trơn
• Process parameters
• Equipment accuracy

Only when these factors are optimized together can manufacturers fundamentally solve vòng tròn nhôm cracking in deep drawing and significantly increase yield rates.
