H14 Hot-Rolled Aluminum Circle: Comprehensive Technical Analysis and Industrial Application Guide

1. Technical Definition and Process Characteristics of H14 Hot-Rolled Aluminum Circle

H14 hot-rolled aluminum circle is a type of aluminum circular sheet manufactured through a hot-rolling process and subjected to specific processing to achieve the H14 temper. “H14” indicates a half-hard temper achieved through work hardening, with a strength level between the fully annealed (O temper) and full-hard (H18 temper) states.

Core Process Characteristics:

• Hot-rolling temperature range: 350-500°C, depending on alloy composition
• Work hardening rate: 20-30%, a key parameter for achieving the H14 temper
• Final heat treatment: Some products undergo low-temperature stabilization treatment (100-150°C, holding for 1-2 hours)
• Grain size control: Typically maintained within 30-50 μm to ensure a balance between formability and strength

2. Detailed Performance Parameters and Mechanical Properties

2.1 Mechanical Properties (Typical Values)

2.2 Physical and Chemical Properties

• Thermal Conductivity: 1060 alloy can reach 230 W/(m·K), making it particularly suitable for cookware applications
• Electrical Conductivity: Approximately 61% IACS for 1050 alloy, 59% for 1100 alloy
• Corrosion Resistance: Exhibits good corrosion resistance in most atmospheric environments; 3003 alloy shows superior resistance due to manganese content
• Weldability: All series offer good weldability, with TIG or MIG welding recommended

3. In-Depth Analysis of Alloy Systems

3.1 Detailed Chemical Composition

1050 Aluminum Alloy

• Aluminum content ≥ 99.5%
• Main impurities: Fe 0.25% max, Si 0.20% max
• Characteristics: Highest purity, excellent formability, but relatively low strength

3003 Aluminum Alloy

• Main alloying element: Mn 1.0-1.5%
• Trace elements: Cu 0.05-0.20%
• Characteristics: Manganese provides significant solid solution strengthening, improving strength while maintaining good formability

3.2 Microstructural Features

• Fibrous structure formed during hot rolling, aligned in the rolling direction
• Uniform distribution of second-phase particles, typically sized 5-15 μm
• Typical rolling texture in grain orientation

4. Deep Dive into Production Process Flow

4.1 Complete Production Chain

Aluminum Ingot Preparation → Homogenization Treatment (570-610°C, 6-12 hours) → Hot-Rolling Breakdown (450-500°C)
    ↓
Thickness Control (6-150mm) → Multi-pass Hot Rolling (Finishing Temperature 300-350°C) → Coiling
    ↓
Cold Rolling/Leveling (Thickness Tolerance ±0.05mm) → Continuous Annealing (350-400°C, Controlled Atmosphere)
    ↓
Circle Blanking (Die Clearance 0.5-2% of Sheet Thickness) → Edge Treatment (Deburring/Chamfering)
    ↓
Surface Treatment → Quality Inspection → Protective Packaging

4.2 Key Technical Control Points

• Temperature Control: Strict control of hot-rolling finishing temperature above recrystallization temperature
• Thickness Tolerance: High-grade products can achieve ±0.02mm
• Surface Roughness: Ra value controlled at 0.8-1.6 μm, meeting most deep-drawing requirements
• Flatness: Generally ≤1.0mm/m, with ≤0.5mm/m for high-precision applications

5. Expanded Application Areas

5.1 Professional Requirements for Cookware Manufacturing

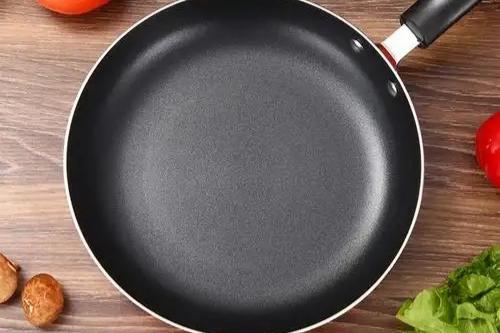

• Woks/Frying Pans: Thickness 1.5-3.0mm, Diameter 280-400mm
• Pressure Cooker Lids: High flatness required, Thickness 2.0-3.5mm
• Special Treatments: Typically require hard anodizing (coating thickness 15-25μm) or ceramic coating
• Safety Standards: Must comply with FDA (food contact material) and various national cookware safety standards

5.2 Special Applications in Lighting Industry

• Reflector Manufacturing: Requires surface reflectivity ≥85%, necessitating high-purity alloys
• Heat Dissipation Design: LED lighting heat sinks require precise thickness control (±0.05mm)
• Surface Treatment: Anodizing coating thickness control (8-15μm), color uniformity ΔE ≤1.0

5.3 Technical Requirements for Electrical Products

• Motor Housings: Require good electromagnetic shielding properties
• Heat Exchange Components: Involve fin processing, requiring materials with high thermal conductivity and good brazing properties
• Structural Components: Typically require secondary CNC machining, with specific requirements for machinability

6. Detailed Specification Parameter System

6.1 Detailed Thickness Specification Grading

6.2 Complete Diameter Specification Series

• Small Specifications: 100-300mm (in increments of 10mm)
• Medium Specifications: 300-600mm (in increments of 25mm)
• Large Specifications: 600-1200mm (in increments of 50mm)
• Special Specifications: Customizable up to 1500mm (requires special equipment)

7. Comprehensive Supplier Evaluation System

7.1 Quality Assurance System Requirements

1. Certification Systems
   • ISO 9001 Quality System Certification
   • IATF 16949 (applicable to automotive industry)
   • Material Traceability System
2. Testing Capabilities
   • Chemical Composition Spectroscopic Analysis
   • Complete Mechanical Property Testing
   • Metallographic Laboratory Configuration
   • Non-Destructive Testing Equipment (Eddy Current/Ultrasonic)
3. Process Control
   • SPC (Statistical Process Control) Implementation
   • Real-time Monitoring of Key Parameters
   • Batch Consistency Management

7.2 Technical Service Capabilities

• Mold Design Support
• Forming Process Optimization
• Failure Analysis and Resolution
• Inventory Management and On-time Delivery

8. Industry Trends and Technological Innovation

8.1 Manufacturing Technology Development

• Precision Rolling Technology: Continuous improvement in thickness control accuracy
• Surface Quality Control: Application of online surface inspection systems
• Intelligent Production: IoT technology application in production processes
• Environmentally Friendly Processes: Reduced rolling oil consumption, increased recovery rates

8.2 New Material Development

• Research and development of high-formability alloys
• Application of composite coatings
• Improvements in micro-alloying technology

8.3 Sustainable Development

• Increased use of recycled aluminum
• Reduced energy consumption (target: 15-20% reduction)
• Carbon footprint tracking and certification

9. Professional Recommendations for Use and Processing

9.1 Storage and Handling

• Storage environment: Temperature 10-35°C, relative humidity ≤70%
• Stacking requirements: Flat platform, stack height not exceeding 1.5m
• Protective measures: Avoid direct contact with copper, iron, and other metals

9.2 Processing Parameters

• Stamping Speed: Recommended 10-30 strokes/minute
• Die Clearance: Single-side clearance 5-8% of material thickness
• Lubrication Requirements: Recommended use of aluminum-specific stamping oil
• Heat Treatment: If softening is required, anneal at 350°C for 1-2 hours

9.3 Solutions to Common Issues

1. Stamping Cracking
   • Cause: Material too hard or improper mold design
   • Solution: Adjust annealing process or optimize mold fillet radius
2. Surface Defects
   • Cause: Contamination or damage during rolling process
   • Solution: Strengthen incoming material inspection, optimize packaging methods
3. Dimensional Deviation
   • Cause: Temperature changes or mold wear
   • Solution: Establish temperature compensation mechanism, regular mold inspection

Conclusion

As a significant intermediate product in the aluminum processing industry, H14 hot-rolled aluminum circle possesses technical depth and application breadth that far exceed general understanding. From alloy design and process control to application development, each stage contains a wealth of specialized knowledge. As manufacturing advances towards higher-end, more precise, and greener development, the production technology of H14 hot-rolled aluminum circles is also continuously innovating and improving.

Looking ahead, this product will continue to develop in the following directions: first, higher precision and consistency control technologies; second, more environmentally friendly and energy-efficient production processes; third, broader expansion into high-end applications; fourth, more comprehensive recycling and reuse systems. For user companies, deeply understanding material characteristics, establishing a scientific supplier evaluation system, and mastering correct processing and application techniques will be key to fully utilizing the performance advantages of H14 hot-rolled aluminum circles and enhancing product competitiveness.
