Why Fully Annealed Aluminum Discs (O Temper) Are Essential for Deep Drawing
Fully annealed aluminum discs for deep drawing are widely recognized as the most reliable material choice for manufacturing cookware, containers, and formed aluminum products that require high ductility and dimensional stability. When deep drawing operations involve severe deformation, the metallurgical condition of the aluminum disc becomes the decisive factor for production yield and product quality.
Aluminum sheet processing machine
1. Understanding O Temper Aluminum Discs
O temper aluminum discs are produced through a full annealing process that eliminates work hardening introduced during rolling. This heat treatment restores ductility by recrystallizing the grain structure, resulting in a soft and uniform material state.
Key characteristics of fully annealed aluminum discs include:
- Maximum elongation capability
- Low yield strength
- Uniform grain structure
- Stable forming behavior under high deformation
These characteristics are particularly critical in deep drawing processes involving multiple forming stages.
2. Why Deep Drawing Requires Fully Annealed Condition
Deep drawing subjects aluminum discs to complex stress states, including radial tension and circumferential compression. Materials with insufficient ductility are prone to cracking, wrinkling, or uneven wall thickness.
Fully annealed discs allow material to flow smoothly into the die cavity, reducing localized strain concentration. As a result, manufacturers achieve higher drawing ratios with fewer forming defects.

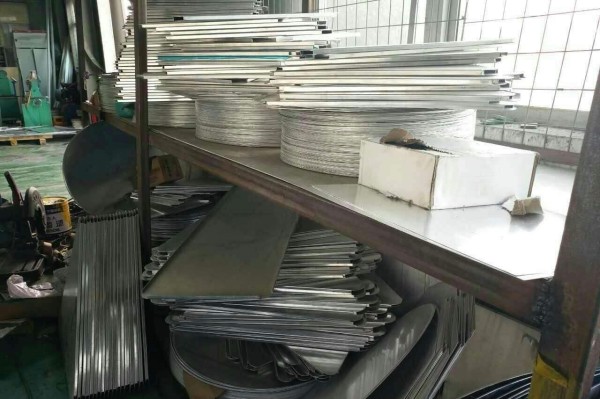

copper processing products
3. Mechanical Property Advantages of O Temper
Table 1: Typical Mechanical Properties of O Temper Aluminum Discs
| Property |
O Temper Range |
Functional Benefit |
| Yield Strength (MPa) |
Low |
Easy material flow |
| Tensile Strength (MPa) |
Moderate |
Controlled deformation |
| Elongation (%) |
High (≥25%) |
Crack resistance |
| Grain Uniformity |
Excellent |
Consistent wall thickness |
These properties provide a wider processing window compared to harder tempers.
4. Comparison with Other Aluminum Disc Tempers
Table 2: O Temper vs. Harder Tempers for Deep Drawing
| Temper |
Ductility |
Drawing Depth Capability |
Defect Risk |
| O Temper |
Very High |
Excellent |
Very Low |
| H12 |
Medium |
Limited |
Medium |
| H14 |
Low |
Poor |
High |
The comparison clearly shows why O temper remains the preferred choice for demanding forming operations.
Aluminum round sheet packaging
5. Industry Case: Henan Huawei Aluminum Co., Ltd
Henan Huawei Aluminum Co., Ltd is a professional aluminum disc manufacturer supplying cookware and industrial forming markets worldwide. The company has extensive experience in producing fully annealed aluminum discs tailored for deep drawing applications.
Practical Application Example
A cookware manufacturer using H12 temper discs experienced frequent bottom cracking during deep drawing of large-diameter pots. After switching to O temper aluminum discs supplied by Henan Huawei Aluminum Co., Ltd, the customer achieved:
- Over 30% increase in successful drawing depth
- Significant reduction in scrap rate
- Improved surface finish after forming
This case highlights how proper temper selection directly impacts manufacturing efficiency.
6. Process Stability and Cost Efficiency
Although fully annealed aluminum discs may appear softer and less rigid, they significantly reduce hidden production costs such as:
- Tool wear from excessive forming force
- Rejected parts due to cracking
- Additional annealing steps after partial forming
From a total cost perspective, O temper discs often deliver better economic performance.
7. Best Practices for Using O Temper Aluminum Discs
To maximize forming performance, manufacturers should:
- Match disc thickness to final product geometry
- Ensure consistent annealing quality and grain size
- Control lubrication and die surface condition
- Perform periodic mechanical testing to verify elongation stability
Material consistency is just as important as material selection.
Aluminum round pieces are packed and dispatched.
8. Frequently Asked Questions (FAQ)
Q1: Can O temper aluminum discs be used for all deep drawing applications?
They are ideal for most deep drawing operations, especially where large deformation is required.
Q2: Why not use H temper discs and anneal after drawing?
Intermediate annealing increases processing time and cost, and may introduce distortion.
Q3: Does O temper affect final product strength?
Final strength can be increased through subsequent forming or surface treatments if needed.
Q4: How can buyers verify O temper quality?
By checking elongation, grain structure, and consistency across batches.
9. Conclusion
Selecting fully annealed aluminum discs for deep drawing is not merely a material preference but a process optimization strategy. Manufacturers such as Henan Huawei Aluminum Co., Ltd demonstrate that stable annealing control and consistent mechanical properties are essential for achieving high-quality deep-drawn aluminum products with minimal waste and maximum reliability.
